Richards of Hull

Galvanised Steel
Screen Frame Washup Troughs

The durable, low-cost, work station for stencil process and screen washup, all-welded construction, in 16 swg thickness steel, with high splash-sides, the lower trough shaped and formed with a positive slope to the outlet pipe.

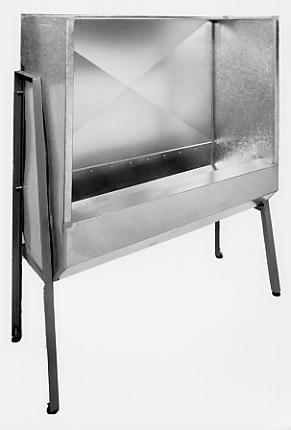

Galvanised Washup Unit Suitable for connexion to a Screenwash Recirculator or for High Pressure Jetting

Open Aperture (left to right) and Clear Inner Height above the duckboard:

Also available in Stainless Steel

45 x 45" (1155 x 1140mm) CODE 6921 ... in Stainless Steel: CODE 6931
72 x 52" (1830 x 1320mm) CODE 6922 ... in Stainless Steel: CODE 6932
83 x 64" (2100 x 1625mm) CODE 6923 ... in Stainless Steel: CODE 6933
94 x 69" (2400 x 1750mm) CODE 6924 ... in Stainless Steel: CODE 6934
114 x 99" (2900 x 2500mm) CODE 6925

Any unit custom built smaller for the same price.

Larger Sizes up to 6 metres long by Quotation

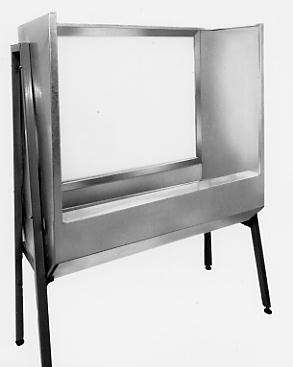

Illuminated Washup Booths with back-lighting, Galvanised or Stainless Steel

Enhanced screen inspection with back-lighting, the opal acrylic panel removeable from the front without disturbing plumbing connexions, illuminated by fluorescent lamps, white as standard or with optional GOLD (U/V screened) tubes.

Open Aperture (left to right) and Clear Inner Height above the duckboard:

45 x 45" (1155 x 1140mm) CODE 6926 .... in Stainless Steel: CODE 6936
72 x 52" (1830 x 1320mm) CODE 6927 .... in Stainless Steel: CODE 6937
83 x 64" (2100 x 1625mm) CODE 6928 .... in Stainless Steel: CODE 6938
94 x 69" (2400 x 1750mm) CODE 6929 .... in Stainless Steel: CODE 6939
High Specification Water Heaters and Mixer Valves with large diameter ouput dials
are available to provide temperature controlled wash water
ProCo Heaters & Water Mixers
Screenwash Recirculator
Screenwash
Recirculation
Ventilation Facility
Ventilation
Facilities
Solvent Washup
Solvent
Washdown
Small Screen Development
Small Screen
Development
