Screenframe Storage Racks
and Vertical Frame Drying Cabinets
|
Richards of Hull Screenframe Storage Racks and Vertical Frame Drying Cabinets |

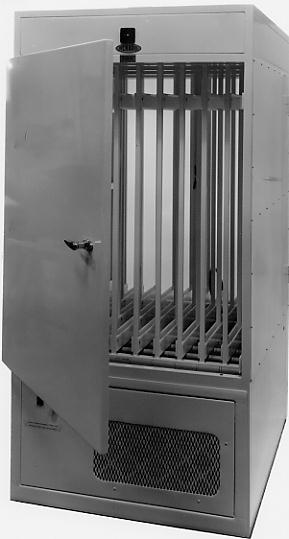

| Modular construction 920mm wide with capacity for either 10 frames of varying sizes or 14 frames of the same size. Frames run into lower stainless steel channels with 6mm thickness Polypropylene rubbing strips - for mixed size frames vertical separators are provided, for a fixed frame size upper locator fins are provided. The inner dimensions of the 10-frame models are a litle larger than the listed nominal frame size; the 14 frame models are made to take the exact frame size required. The Drying Cabinets are based on the same chassis, equipped with filtered air input, and temperature controlled warm air directed through the screens from below. |
|
Storage Racking
All steel construction, powder coated, with inner stainless steel frame runners; size for size the 14 fixed-frame modules are the same price as the 10 capacity variable, and can be stacked in tiers. Model SR/1 - nominal frame size 40 x 50" -(1020 x 1270mm) Model SR/2 - nominal frame size 59 x 70" -(1500 x 1800mm) Model SR/3 - nominal frame size 71 x 91" -(1800 x 2300mm) Model SR/4 - nominal frame size 79 x 130" (2000 x 3300mm) --------------------------------------------------------------- Vertical Screen Frame Drying Cabinets Model VC/1 - nominal frame size 40 x 50" -(1020 x 1270mm) Model VC/2 - nominal frame size 59 x 70" -(1500 x 1800mm) Model VC/3 - nominal frame size 71 x 91" -(1800 x 2300mm) Model VC/4 - nominal frame size 79 x 130" (2000 x 3300mm) please refer to the Data Sheet for detailed sizes and prices Double Door Pass-Through Versions also available. Horizontal Cabinets in a similar range of sizes. |
