Serigraphic Process
Screen Frame Drying Cabinets
|

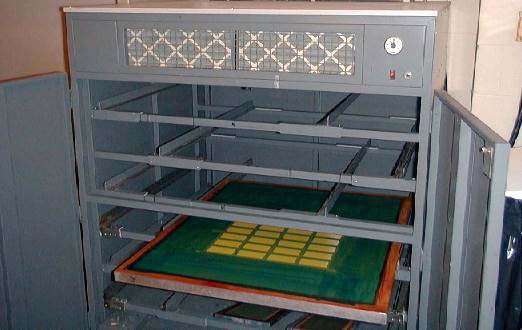

| Richards of Hull Serigraphic Process Screen Frame Drying Cabinets |
| Six shelf levels with ajustable frame locator bars, and optional tee-bars for smaller frames to fit in side-by-side. Electro-mechanical microstat temperature control with dial indication of the internal temperature. The sizes of the four models listed below may be considered as price-breaks; a cabinet may be made smaller within that price level if it is necessary to save space. |
| Model 6S/1 Max frame size 40 x 50" (1020 x 1270mm) External size 1430 wide x 1420 deep x 1760mm high Model 6S/2 Max frame size 59 x 71" (1500 x 1800mm) External size 1960 wide x 1900 deep x 1760mm high Model 6S/3 Max frame size 71 x 91" (1800 x 2300mm) External size 2460 wide x 2200 x 1760mm high Model 6S/4 Max frame size 79 x 130" (2000 x 3300mm) External size 3460 wide x 2400 deep x 1760mm high |
