Richards of Hull Mobile Superglue Dyetank System

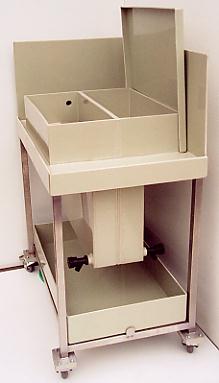

A double tank superglue dyetank assembly built in heavy gauge Polypropylene on a stainless steel chassis with quiet rubber- tyred castors to allow the unit to be moved to another location A drip-tray bund tank is provided; this has sufficient capacity to retain the content of the dye tank if the valve should leak The alcohol tank is located at the side with the splashguard, which may be positioned at the left or right, and may be specified to suit the unit location. Samples may be be transferred to a sink for further processing, the wash tank at the sink side, to avoid contaminating the dye tank. Dimensions External size: 650mm wide x 915mm deep x 1300mm high Height to rim level 900mm Pictures by courtesy of Tayside Police, Identification Branch, Dundee, Scotland

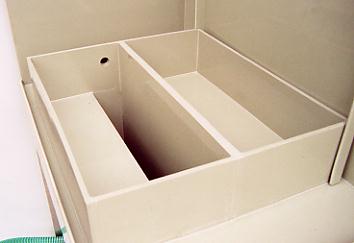

Each tank is 580 x 90 x 460mm deep as standard, with a top gallery 250mm wide and 150mm high Tank capacity approx. 40 litre Custom variants on the design can be produced within the regular price formula

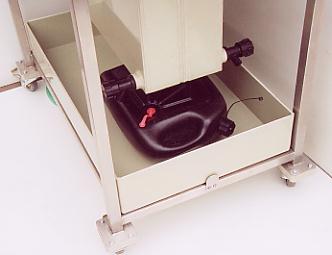

Wash Water infeed from a sturdy stainless steel hose adaptor and outflow through 3/4" pipe to a flexible hose. The height of the bund-tray allows a horizontal "sump drain" container to be inserted to drain off the alcohol tank.

Sink-Integral Models in PP and Stainless Steel
