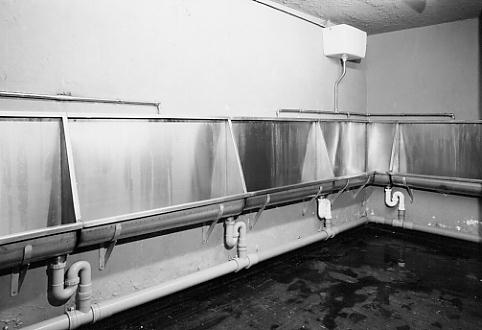

Richards of Hull Stainless Steel Urinals

---

Designed for wall fixing with a shaped profile and positive fall to waste, and a top valance concealing a copper sparge pipe; the front edge is turned inwards and downwards.
A 3/4" threaded adaptor is provided for connexion to a cistern downpipe; based on a water service volume of 4.5 litres per 600mm length, the 2.4 and 2.9m units are provided with two adaptors

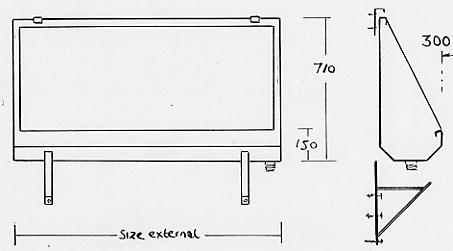

	Made to order to fit the space, through four price breaks, lengths up to: 1200mm ... price CODE 9010 1780mm ... price CODE 9012 2400mm ... price CODE 9014 2970mm ... price CODE 9016 Wall mounted and Island wash troughs also available
	The top valance is hooked under the upper brackets which have concealed fixings, the unit being supported and held firm from below by the cradle brackets

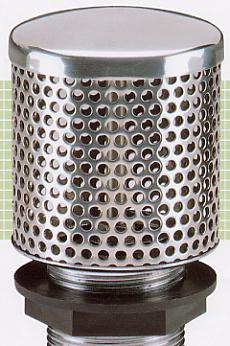

These urinals may also be supplied with the Cistermiser "Freeway II" filter outlet; a finely perforated mesh prevents even small pieces of material passing through while presenting the maximum surface area for drainage. Special deodorising blocks, available from the merchant, are fitted internally - pieces of used block, such as might be used with a conventional grating, cannot enter the system and cause blockages .. for info on cistern control go to www.cistermiser.co.uk

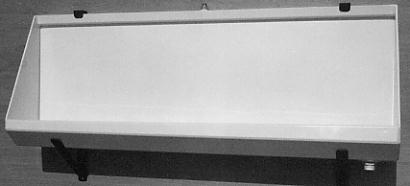

Also available in white Polypropylene Polypropylene is robust, resilient, but not resistant to burn marks. Other products in both stainless and PP include sediment & grease traps, handwash troughs, water & waste tanks custom made, and inset sinks.

---

Richards of Hull

tel +44 (0) 1482 44 24 22 .... fax +44 (0) 1482 44 23 62

Unit 1, Acorn Estate, Bontoft Avenue, Hull HU5 4HF, England

email to sales@richards.uk.com
