Water Heating Systems
......... providing tempered water at the point of use
|
| Richards of Hull Water Heating Systems ......... providing tempered water at the point of use |
 |
Stiebel Eltron Model DHC-8 Compact hydraulically controlled pressure type instantaneous water heater for multipoint applications; no venting is necessary, and can be fed direct from mains. Powerful 9.6kw element for enhanced flow rates and temperatures It is not suitable for use with a "thermostatic" mixer valve and to achieve a lower working temperature needs to employed with a "manual" mixer valve such as illustrated below. Unit size 200mm wide x 362mm high x 105mm deep. Hot water output with temperature increase from 10C to 38C .... 4.2 l/m |
 |

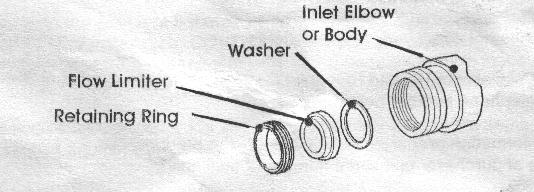

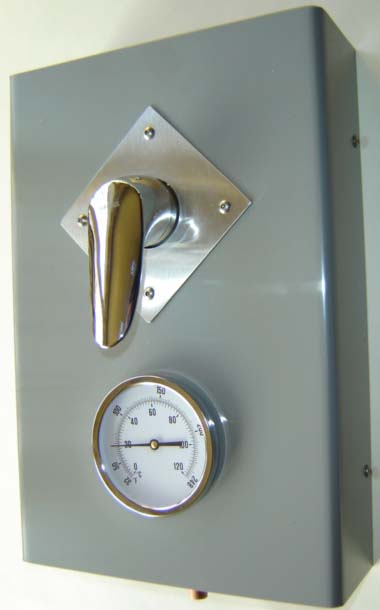

Water Mixer Valve with Temperature Indicator Dial A pressure balance valve designed for high pressure systems and modulating combination boilers, automatically compensating for pressure drop during use.  For use with a DHC8 on mains water supply a 5 L/min flow restrictor is supplied for fitting into the cold inlet on the mixer |
 Also available for wall mounting without the dial thermometer |
 |
Model DHE SL - Three Phase Temperature Controlled Fully electronically controlled water temperature output; can be set accurately from 20C to 60C, with LCD temperature display. Instantaneous multi-point suitable for over or under-sink location, and can be remotely controlled ... constant temperature at several draw-off points at the same time. Hot water output - with temp rise from 10C to 38C DHE-18 SL (18kw, 3ph) - 9.2 l/m ...... DHE-21 SL (21kw, 3 ph) - 10.7 l/p DHE-24 SL (24kw, 3ph) - 12.3 l/m .... DHE-27 SL (27kw, 3 ph) - 13.8 l/m |
