Standard Designs for Photo and Chemical Wet Bench Sinks
Three standard configurations based on our Wet Bench Design Formula, built in light-grey rigid PVC on taper style stainless steel legs. Integral splashback/sides with rear service void for faucet and waste connexions.
Prices include two hose adaptor taps (code 2111).
Any of the designs can be made smaller to order for the same price if needed to fit a particular space.

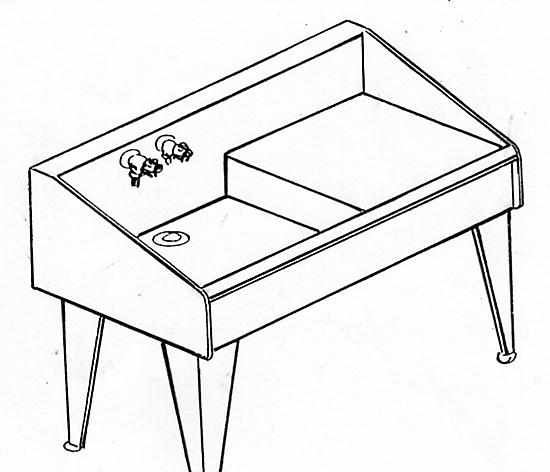

Single Surface Sink Sink area and flat surface just below the rim level; this design works well as a print or film processor work station.

Internal size 26" x 8" deep (660mm x 200mm)

Model D1 - external 1240 x 785mm ... price CODE 0901
Model D2 - external 1850 x 785mm ... price CODE 0902
Model D3 - external 2440 x 785mm ... price CODE 0903
Double Surface Unit A double-surface design - within the overall length the proportions of sink and surface may be specified to individual requirements.

Internal size 26" x 8" deep (660mm x 200mm)

Model 2D1 - external 1850 x 785mm ... price CODE 0905
Model 2D2 - external 2440 x 785mm ... price CODE 0906
Model 2D3 - external 3070 x 785mm ... price CODE 0907
Open Trough Sinks Model T1 - internal 48 x 26 x 6"
external 1240 x 785mm..............CODE 0911
Model T2 - internal 65 x 26 x 6"
external 1670 x 785mm..............CODE 0912
Model T3 - internal 48 x 34 x 8"
external 1240 x 990mm..............CODE 0913
Model T4 - internal 80 x 34 x 8"
external 2050 x 990mm..............CODE 0914
Model T5 - internal 72 x 48 x 8"
external 1850 x 1340mm.............CODE 0915
Optional or Alternative Water Taps
