Drying Screen Constructional Detail
|
| Richards of Hull Drying Screen Constructional Detail |

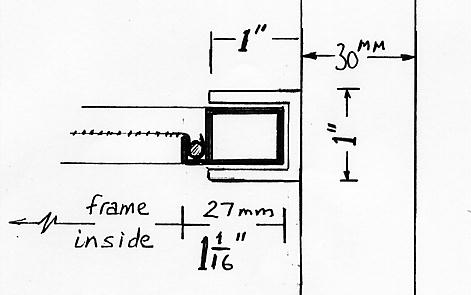

| The drying rack rails are now made with 1" x 1" channel section, into which the mesh drying frames fit snugly. The improvement over the "angle" used previously is that frames can be pulled out for some distance without tipping out. |
| The rails are 1" x 1" channel section, within a 30 x 30mm steel chassis structure "Standard" spacing is 40mm apart; under a Wet Bench this allows 8 frames to be stacked, 10 or 12 frames in a rack with a table top at working height. Freestanding racks can be made higher, or mobile racks lower to fit under a counter top. |
|
Drying frames are made with a vinyl coated glass fibre mesh within a sturdy white aluminium section. The price list offers a range of sizes but custom sizes, even one-off, can be made to the same price as that of the next size up. Drying Screens and Racks Price List Pages |
