Richards of Hull

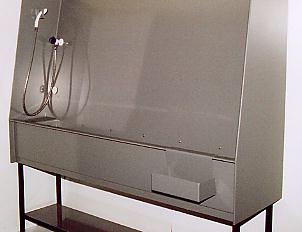

Litho Plate Checker

Plate Checker Overhead lighting and the angled surface allows close inspection of plate preparation, checking for plate irregularities and helping to avoid losing press time
Deletions can be made with precision and a handspray is provided for washing plates before gumming up
The height of the inner back panel at 48" (1220mm), the plate support studs adjustable in three positions.

Model PC/1 - length 1220mm (48") - price Code 5740
Model PC/2 - length 1720mm (68") - price Code 5750
Made in robust, corrosion proof and chemical resistant rigid PVC. The lights are switched through an air-switch actuated relay, a slide-along sundries tray hooks onto the front rim and a lower shelf is provided for bottle storage.

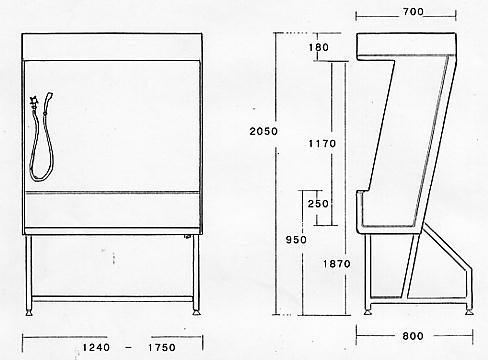

dimensions
Dual Function

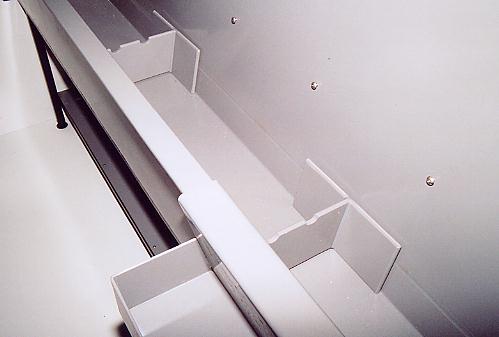

The width of the bottom trough is 350mm (nearly 14") and at 250mm is deep enough for washing and soaking plate processor roller assemblies.

A pair of slideable, removeable blocks with three locator slots facilitate washing up rollers with spindles.
