Richards of Hull

Low Profile C Series Sinks

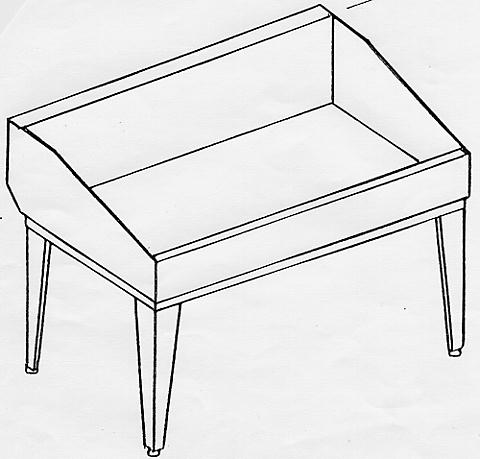

A budget priced range of sinks in chemical resistant rigid PVC sinks, open trough style, with stainless steel legs, with a platform and services space along the back for mounting swanneck taps.
This design may be specified in two depth formats - either 24" inside x 8" deep, or 26" (back-to-front) and 6" deep. The 26" size accommodates a Paterson 20 x 24" photo tray, but 8" deep can be more appropriate for plate or roller washing.

The design of these sinks has now been revised with a new support frame style

Please go to C-Series_Sinks (pdf)

Low Profile Sink Internal Length and Price Codes:

Model C/2 - 24" ( 61cm) Sink - CODE 0920: Legs - CODE 0930
Model C/3 - 36" ( 91cm) Sink - CODE 0921: Legs - CODE 0931
Model C/4 - 48" (122cm) Sink - CODE 0922: Legs - CODE 0932
Model C/5 - 60" (152cm) Sink - CODE 0923: Legs - CODE 0933
Model C/6 - 72" (183cm) Sink - CODE 0924: Legs - CODE 0934
Model C/8 - 96" (244cm) Sink - CODE 0925: Legs - CODE 0935
Partition added raised surface Customising the Design

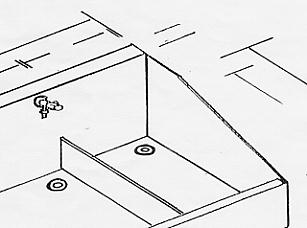

Partitions (with an extra waste outlet) can be added to create separate compartments for a wash tank, fixer bath or dump trough for chemical recovery

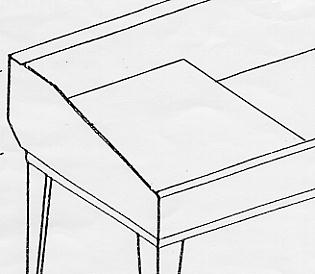

Inner raised surfaces (left or right) can be provided for installing a print washer, processor machine, squeegeeing prints or wiping plates.

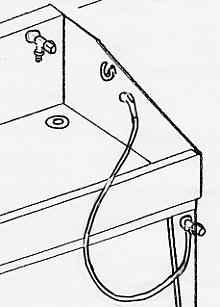

trigger handspray swanneck taps Water Services

Hose Adaptor Tap fitted to the back ... CODE 2111
Swanneck Tap with hose adaptor ........ CODE 2121
Lever (wrist action) Mixer Tap ............ CODE 2124
Handspray on hose with control valve .. CODE 2129
