Richards of Hull Measuring a Window for a Cassette Blind

Blinds are made to measure to fit the size of the window

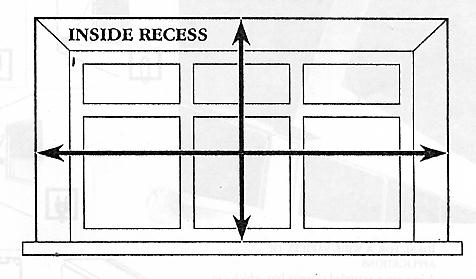

Measure the inside width in several places, particularly at the top of the recess; we will make the necessary allowances

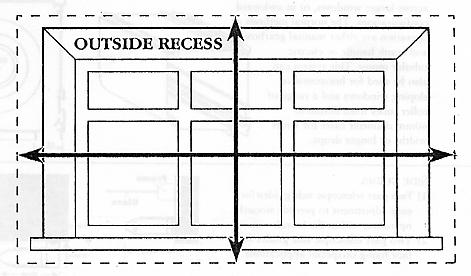

If you would like the blind for fixing outside the window you should decide the size. We suggest that the blind should be bigger by at least 3" (75mm) all round

Electrical Operation

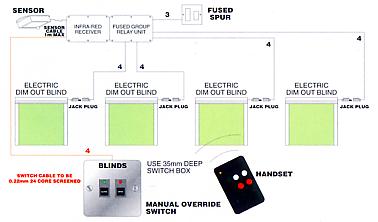

Systems 55 and 90 can be electrically operated, 12 volt with transformer or 230 volt. Built in limit switches are normally set for fully open or fully closed Control Systems Electronic control systems can be designed for individual applications. The diagram shows four blinds controlled together by an infra-red system with one manual overide switch and a fused group relay unit. Using an interface unit, installations can also be controlled by central computer.
